HNST → product center → Fuses → Glass Tube Fuses → WALTER-FSD(P)

Updated time ：2023-05-30 11:55:10

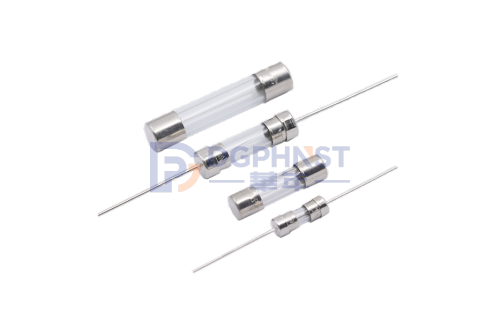

Series image: for reference only

Series No.： FSD(P)
Size (mm)： 5.2x20
Rated Current： 200mA~15A
Rated Voltage： 250VAC
Characteristic： Fast Acting
Wire Alloy
Cap Brass with nickel plated
Body Glass Tube
Lead Tinned Copper wire
Operating Temperature -55℃～125℃
Standards and approvals
UL E56092(200mA~15A)
VDE 40016929(200mA~10A) 40016932(12A ~15A)
BSI KM70911(200mA~6.3A)
CCC 2020970207000226 (200mA~6.3A)
CQC CQC11012062192(8A、10A)
PSE JET2179-31003-2003(1A~5A) JET2179-31003-2004(6.3A)
KC SU05015-9005A(200mA~800mA) SU05015-9001A(1A~2.5A) SU05015-9003A(3.15A~6.3A)
Recommended Customer Soldering Parameter
Solder Pot Temperature 260℃ Max
Solder Dwell Time 2~5s
Solder Iron Temperature 350±5℃
Heating Time 5s Max
View more
Retract
Company Profile： Walter_ Profile_JAP.pdf
Expand
Data Sheet： GLASS FSD(P).pdf
Electronic： Walter_ Product_overview.pdf
